Industrial high quality professional Vacuum Packing Machine For Food

1.Product introduction of Vacuum Packing Machine For Food :

1. The conveyor belt method can be used for continuous packaging, which can increase production quantity and save a lot of manpower and time.

2. The front and rear sections can be connected to automatic conveying equipment to cooperate with the whole factory design of automated process operation.

3. The whole machine can be tilted at four angles. When there are items with more water or soup in the packaging bag, the angle of the conveying table can be adjusted to prevent the water or soup in the packaging bag from overflowing. It is suitable for various products.

4. The PLC automatic control system is adopted, and the screen is independently displayed, which is easy to read.

5. The heating rod uses water cooling, the sealing quality is good, and the sealing temperature is more stable

6. High-quality stainless steel plates are used, which are durable and easy to clean.

7. The bowl ABS brake system is adopted, and the positioning of each station is accurate and stable.

8. The special valve form is adopted, which has a long service life, unobstructed air path, and improved vacuum.

2.Technical parameters & Quotation of Vacuum Packing Machine For Food

Model

WM-DZJ-1000(Single seal)

WM-DZJ-1100Double seal

Vacuum chamber dimensions

1225×550×100mm

1225×550×100mm

Length of sealing line

1000×10mm

1100×10mm

Heat seal strips

1

2

Vacuum pump

150 M3/H

150 M3/H

Ultimate pressure/mbar

0.1-0.5

0.1-0.5

Size seals efficiently(once/hour)

240-360

240-360

Power supply

380V/50HZ

380V/50HZ

Power

5.5KW

6KW

Frame

304 stainless steel

304 stainless steel

Panel

Waterproof computer board control

Waterproof computer board control

Total weight

380Kg

400Kg

Boundary dimension

1870*1550*1400mm

1970*1550*1400mm

Contact Us to Get a Quote

Zhengzhou Wenming Machinery Co.,Ltd

Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586
Whatsapp/Wechat:
Email:
You can contact us to get more details of machines or let us know your requriement we can design and manufature machine according to your need.

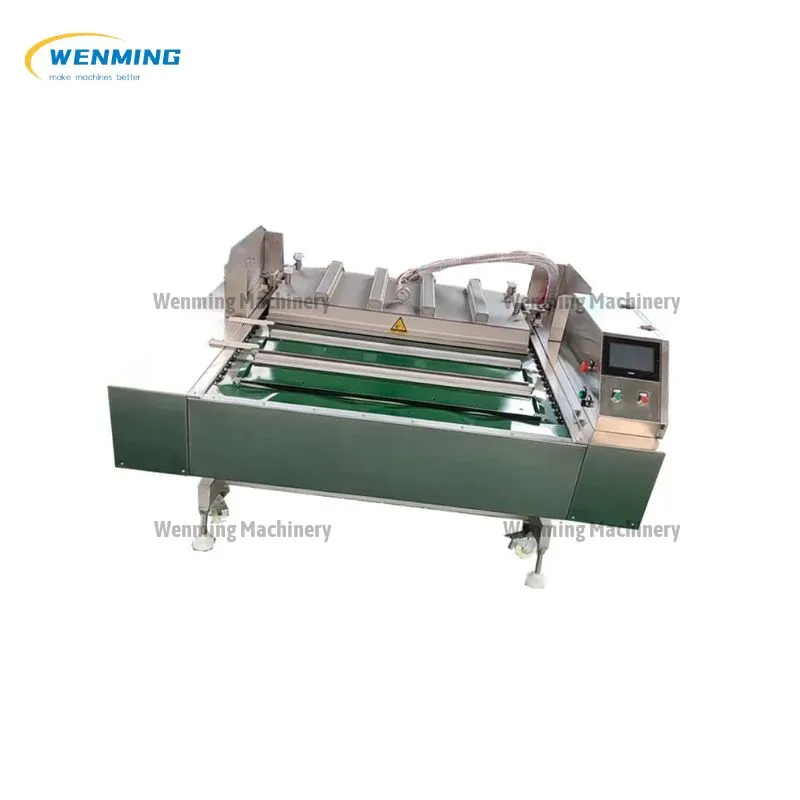

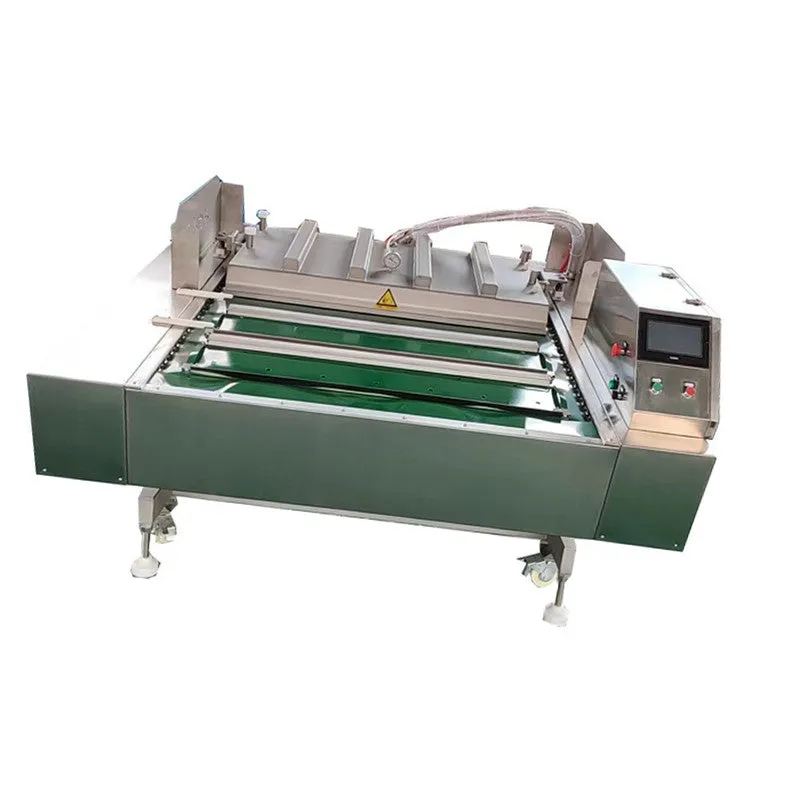

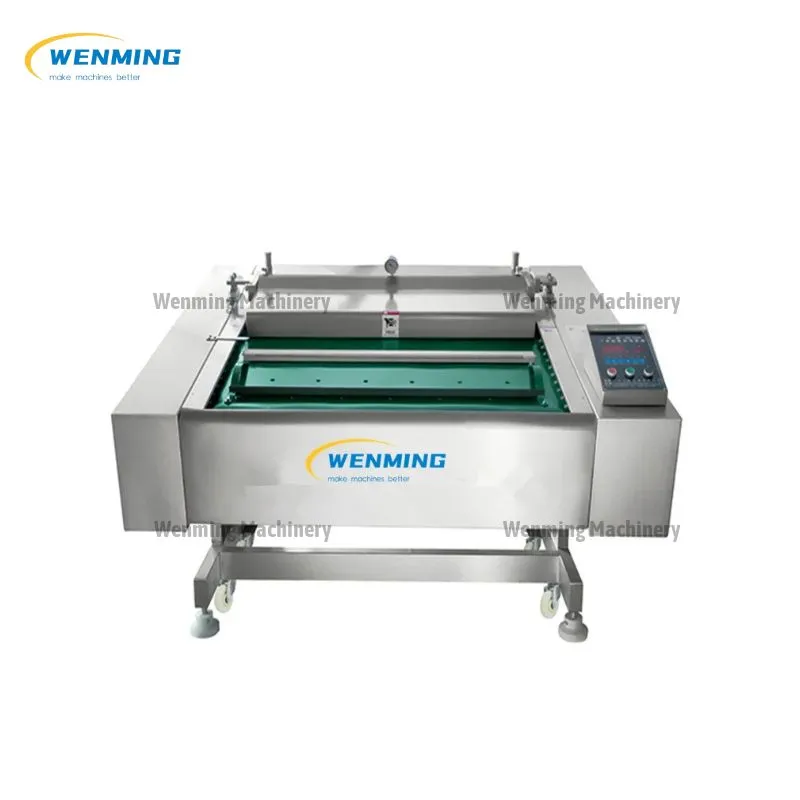

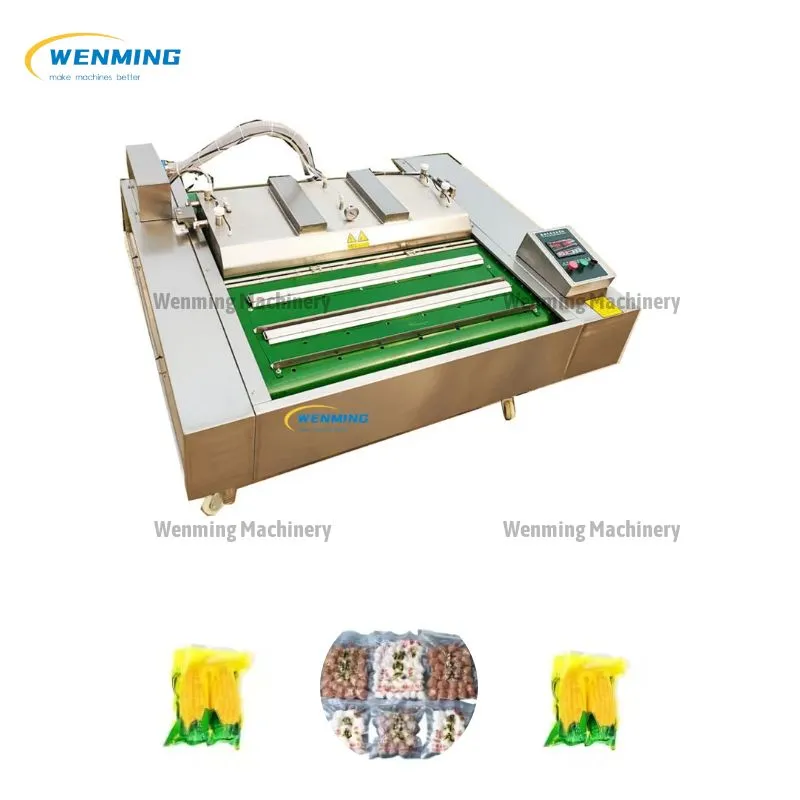

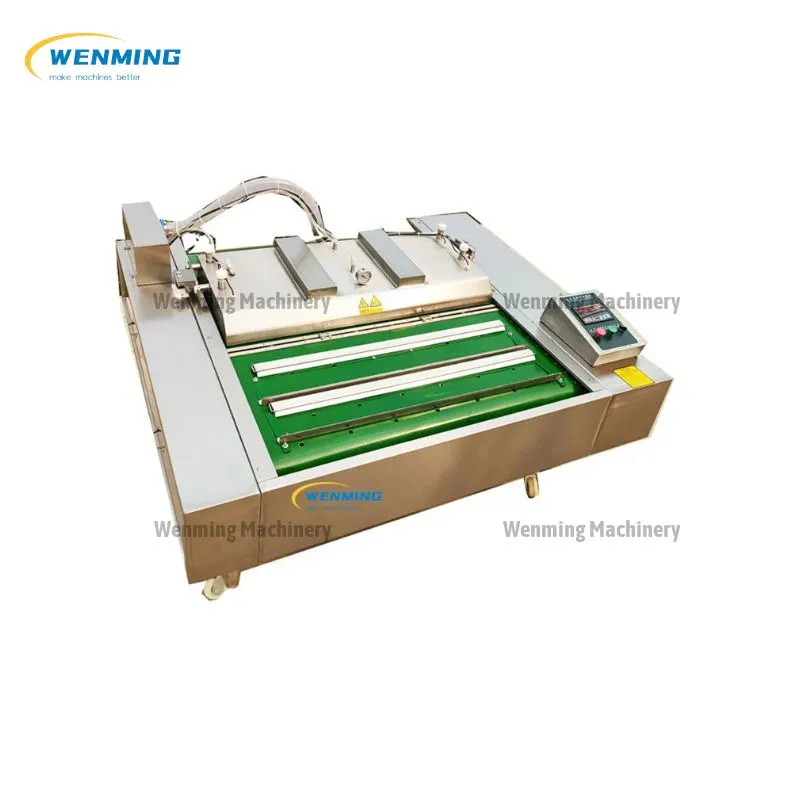

3.Pictures of Vacuum Packing Machine For Food  :
